Following on from our Introduction to Standing Seam Zinc Roofing Design, the team at elZinc® look at three typical roof build-ups for standing seam zinc roof construction. Don’t forget to subscribe to receive the other posts in this series.
Supporting the Zinc Roof
Standing seam trays are not self- supporting and require a fully or almost fully supporting substrate against which they rest and to which their clips are fixed. The substrate can be vented or unvented but it is essential that the roof build-up is correctly executed in either design to avoid the risk of interstitial condensation that could damage the roof. Contact us for design support for your roof.
Timber is used for the substrate on ventilated roofs, in the form of soft-wood boarding, WBP exterior grade plywood sheathing or Class 3 OSB sheathing. The minimum thickness of the substrate is 22mm for the s/w boarding and 18mm for the plywood and OSB sheathing. These materials should be fixed perpendicular to the direction of the standing seams. If there are any doubts regarding the minimum clip pull-out values in the OSB sheathing, a test should be conducted to establish that the 560N minimum will be achieved with the proposed type of fastener.
Warm zinc roof construction can also use timber substrates, but the need to reduce cold bridging in many countries has led to the use of rigid insulation boards and composite insulation boards or sandwich panels as the direct substrate under the zinc. Rigid insulation is used in combination with special clips that enable the zinc to be fixed to the supporting decking below, and used in this way it must be able to withstand foot traffic and the like, and not deform during the life-time of the building. Composite insulating boards provide a timber decking that is factory-bonded to the insulation, so the installation of the zinc is executed using traditional clips and fixings.
Three examples of the many possibilities that exist are shown here. For more detailed information on these, and on other types of supporting materials and roof construction, please get in touch.
ElZinc® Protect+® zinc sheets and strips, coated with a 60μm polyurethane-polyamide layer on their underside face, can be used as an additional measure to protect the underside of the zinc covering if there are doubts regarding the efficiency of the design to control condensation within the roof in all weather conditions. Please consult our technical advisory service for more information on when to use the Protect+® range of products.
1. Ventilated Roof Buildup
The height of the ventilating layer should be a minimum of 5cm, and in some cases (low pitch, long eaves to ridge measurement) should be increased to 10cm. The direct support can be open gap softwood boarding, or plywood or OSB sheathing, all laid parallel to the gutter, and staggered. The optional breather membrane provides additional protection for the insulation against cold wind- driven drafts that enter the ventilation gap from the outside.
2. Warm Roof Buildup with Timber Insulating Board
The factory bonded insulating board is screw fixed through the vapour barrier into the decking below. The high performance vapour barrier must self- seal against these fixings, and all laps and roof penetrations must be taped and sealed. The exterior face of the insulating board should be exterior grade plywood or class 3 OSB, at least 18mm thick. The performance of the vapour barrier is fundamental in this design.

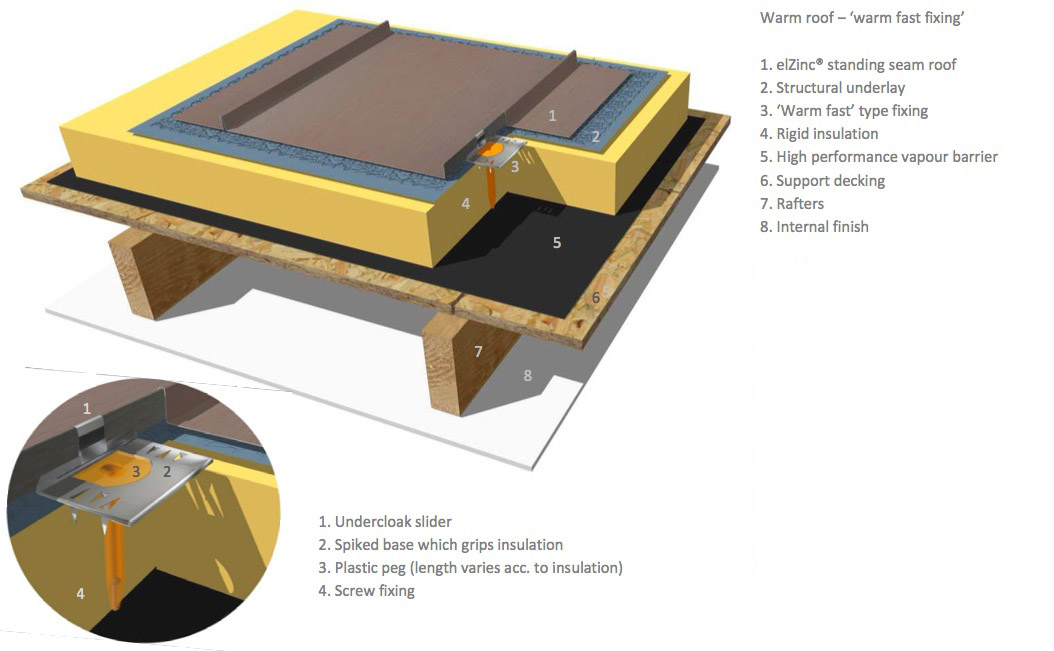

3. Warm Roof Buildup with ‘Warm Fast Fixing’
The high performance vapour barrier, whose effective function is fundamental in this design, must self-seal against the warm fast type fixings, and all laps and roof penetrations must be taped and sealed. The insulation should be rigid enough to withstand foot traffic and not deform in any way during its service life. The support decking can be timber or steel. Standard clip centres apply, but the zinc is fixed using one screw only per clip, so a sufficient pull-out value for the screw in the supporting decking (560N) should be ensured.
More Information
- Comment below or get in touch for more information on these roof buildups.
- Discover the range of colours and finishes of zinc and other metals available in our product gallery
- Contact us for help in designing your zinc roof – roof design is part of our 8 Steps Service.
- Read the introduction to standing seam in Part 1 of this series.
- In part 3 we look at four special roof shapes for standing seam zinc roofing and set out what you need to consider when designing domes, barrel vaults and conical roofs.
- Please subscribe here to make sure you don’t miss future blog posts.
Note: The colours shown in this document are for illustrative purposes only and should not be taken as representative of the real finishes. Please request a sample card to see the real elZinc® finishes.
About the author – SIG Zinc and Copper Team
We are the team at SIG Zinc & Copper. We design and supply zinc, copper, aluminium and stainless steel roofing and cladding products all over the UK. We also publish blog posts! We're part of SIG Roofing. With over 120 branches nationwide, SIG Roofing is the largest supplier of roofing materials in the UK, providing our customers with impartial advice on the right roofing solution for their projects.
I am limited to height so can I construct a cold flat roof or is this not advisable?
Hi Jane,
You can construct a cold roof build-up when using zinc, but the absolute minimum pitch is 3 degrees, preferably 5 degrees.
Hope that’s helpful,
Simon
We are looking to install option 3 over a steel frame and would like to install extra insulation either Rockwool or spray insulation between the purlins of the steel frame directly below the vapour control cover d osb. Is this acceptable please? This will increase our u value and reduce the noice from the standing seam roof. Thanks
Dear Tracy,
Adding insulation below the vapour control layer could increase the risk of condensation, and we do not recommend the use of method construction. I would suggest increasing the insulation thickness and add an acoustic layer if required.
Please feel free to contact us for more information if required.
Simon
Hi there,
Can I use zinc roofs on a 850mm radius curve as I’ve designed a pitched roof incorporating a 6 degree flat roof with 850mm radius chamfers at each end?
There are also ways to mix and match each roof design to create unique structural appeal. You can combine hips with gables and use odd pitch variations to accent a building. It is very interesting when you combine a flat roof with mansard walls as well. Something that I have not mentioned is the octagonal roof or witches hat for an offset tower to carry a circular appearance for spiral stairs to transcend two or three stories in height.
Can you guide me towards construction details for inserting opening roof lights, large fixed double glazed panels into flat roof or shallow zinc roof pitches? Similarly, any construction details for flues and/or extractor centres.
Hi Tom, thanks for your enquiry.
Please drop us a line at the email at the top of the page with some drawings of your project and we can advise you.
Regards
Simon
Can you tell me what the average installed sq. m. cost is for the zinc covering, not including all other elements, and does is require a specialist installer/
Hi Ray,
SIG Zinc & Copper do not offer a supply and install service. We work with an accredited national installers network who are able to provide accurate supply and fix quotations. If you can supply drawings and a project location we can obtain a supply and fix rates.
You can email us on the address at the top of the page.
Simon.
I am looking at No 1 – ventilated roof buildup.
In our house between the ceiling joists we installed 100mm PIR justified to the top of the joists and 50mm PIR on top of the joists to avoid cold bridging.
Could I do the same for the ventilated roof buildup?
Hi Alex,
The roof build-up you have described is not suitable for zinc roofing. All of the insulation must be above the vapour control layer. We would suggest a plywood layer above the rafters, a vapour control layer fixed to the plywood and the insulation above. If you can send some drawings we can assist with a specification proposal.
You can email us at the address at the top of this page.
Regards
Simon Walker
